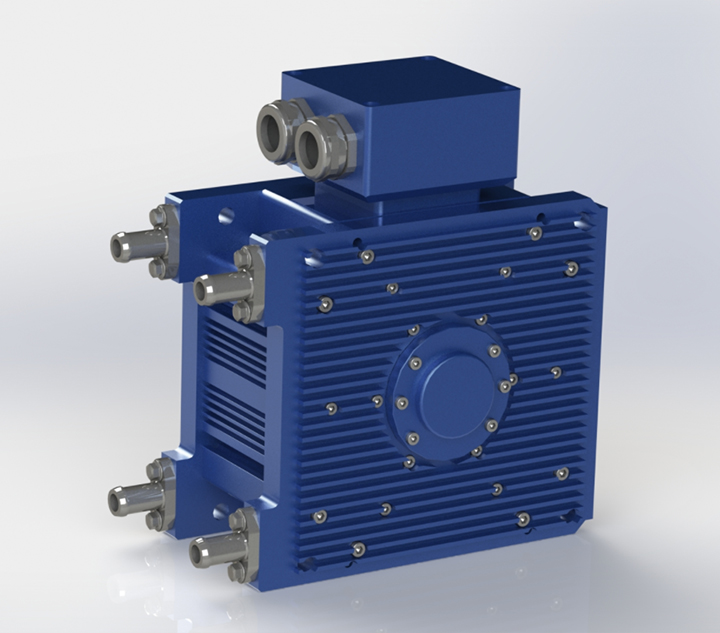

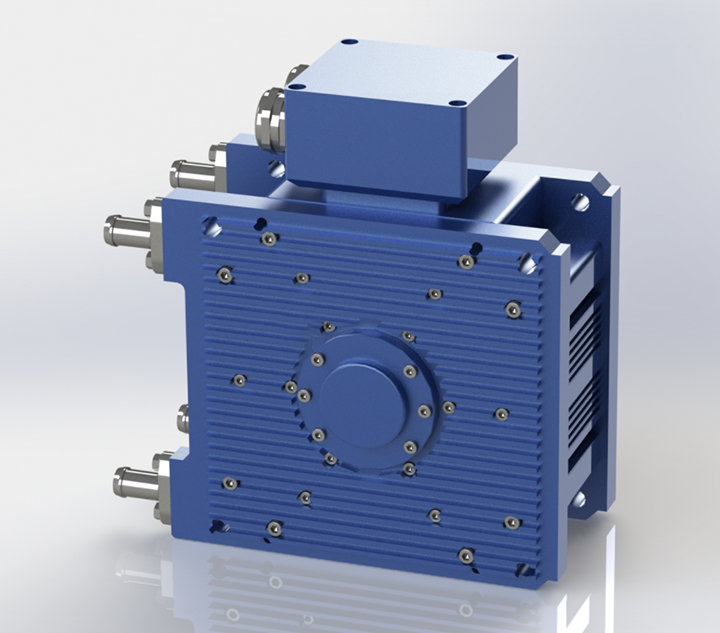

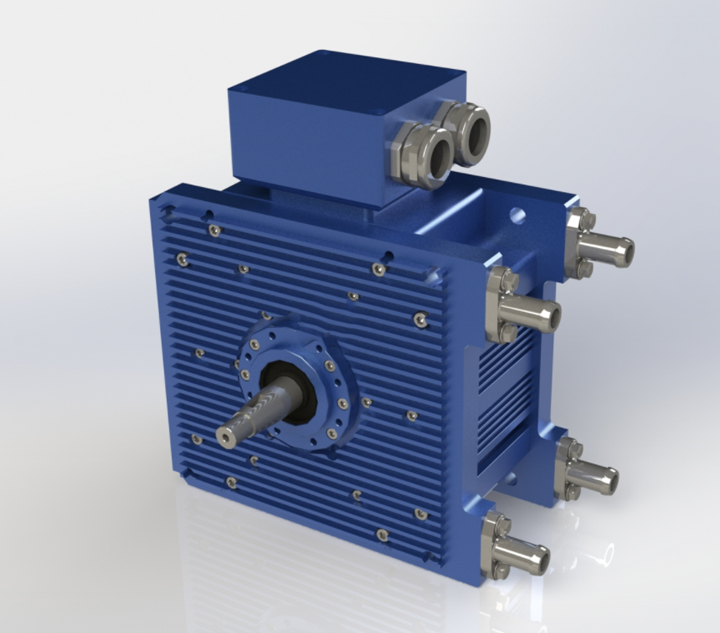

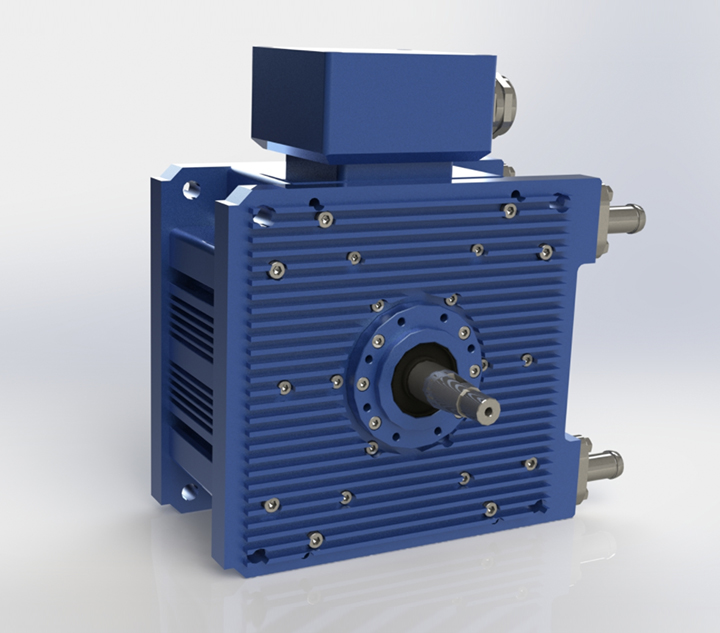

FTYPXS225
- Product parameter

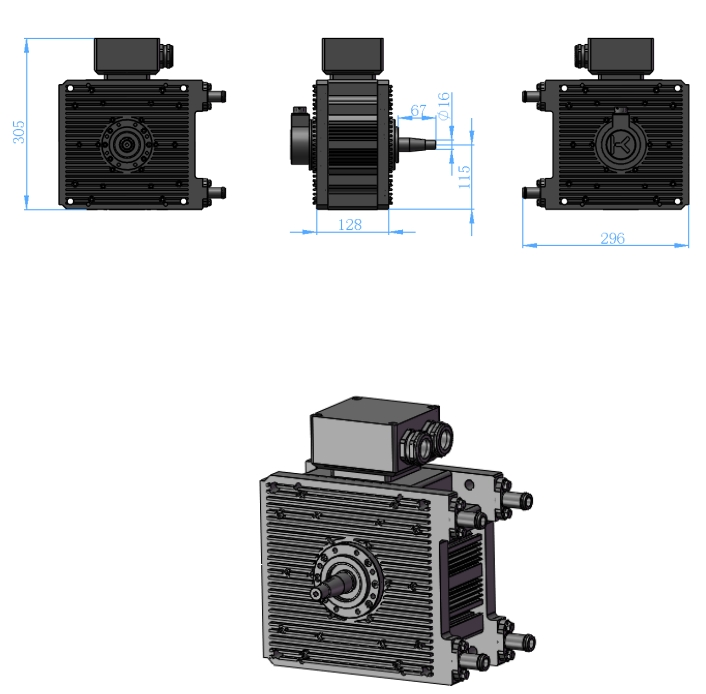

- Product size
| Motor parameter | |||
| Motor type | FTYPXS225 | Motor type | Disk permanent magnet synchronous |
| Rated power (KW) | 14 | Rated efficiency | 94% |
| Rated speed (r/min) | 3000 | Insulation class | H |
| Rated torque (N·m) | 45 | Weight (kg) | 25 |
| Rated voltage (VAC) | 380 | Cooling mode | 水冷 |
| Working system | S1 | Class of protection | IP67 |
FTYPXS225 This product is suitable for rated voltage 96-540 (VAC), rated speed 1500-5000 (r/min).
