TYPXS435
- Product parameter

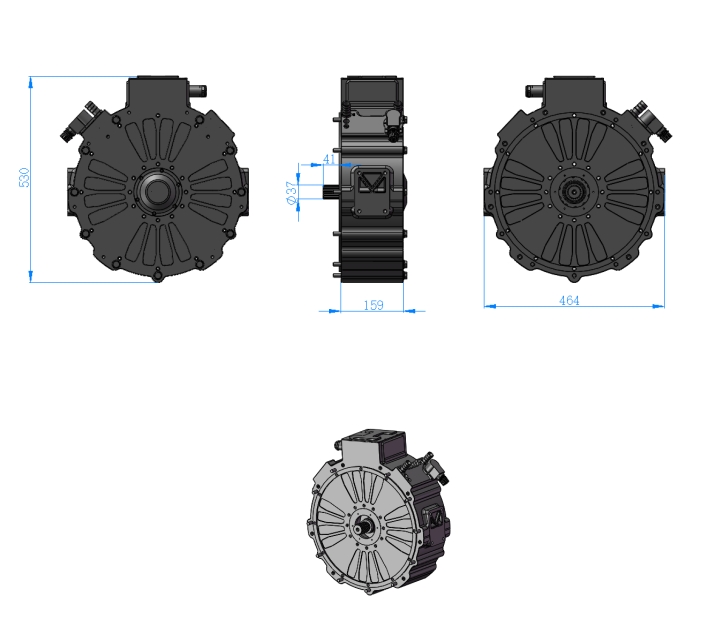

- Product size
- External characteristic curve
- Efficiency MAP
| Motor parameter | |||
| Motor type | TYPXS435 | Motor type | Disk permanent magnet synchronous motor |
| Rated power (KW) | 90 | Rated efficiency | ≥96% |
| Rated speed (r/min) | 2000 | Insulation class | H |
| Rated torque (N·m) | 550 | Weight (kg) | 90 |
| Rated voltage (VAC) | 380 | Cooling mode | water-cooling |
| Working system | S9 | Class of protection | IP67 |
