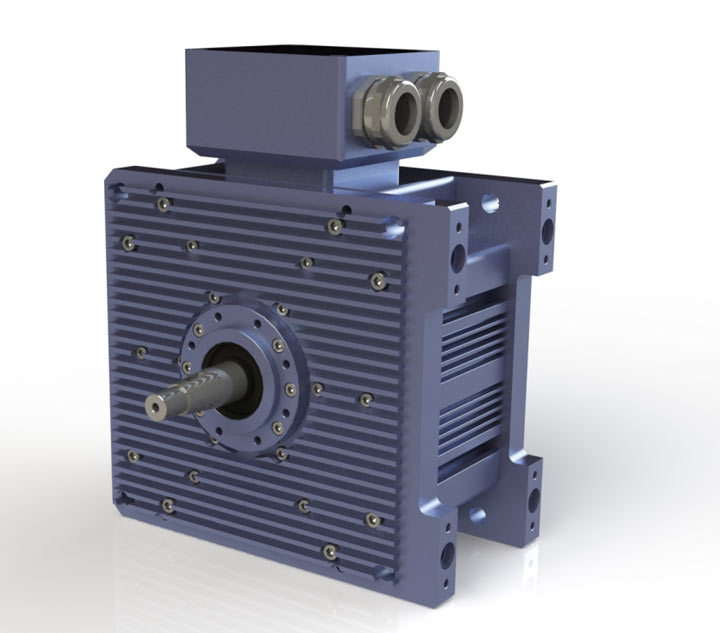

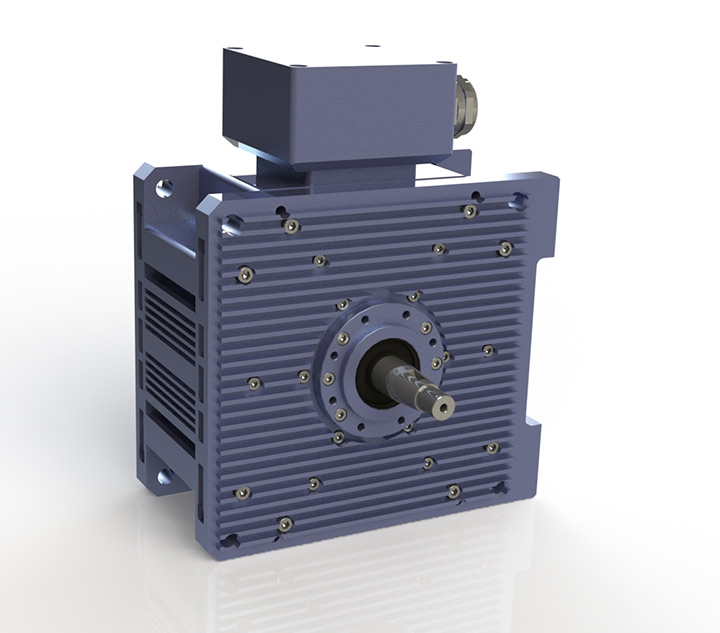

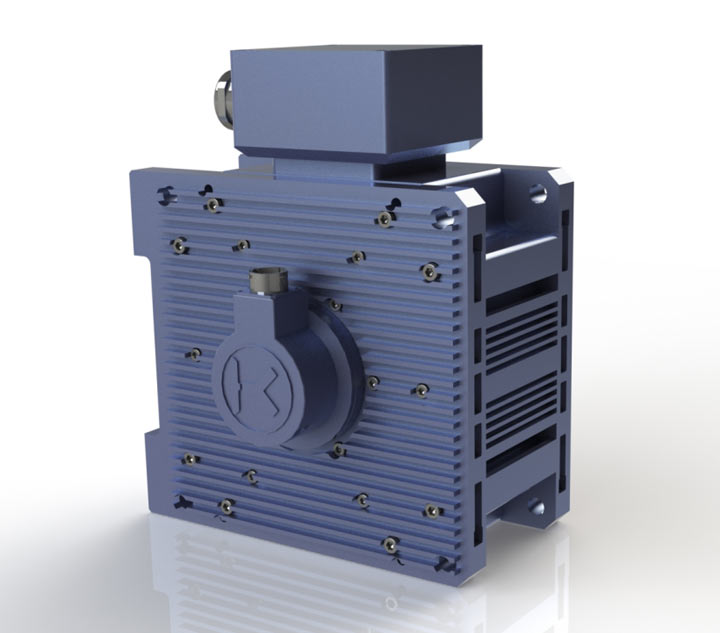

FTYPXF225
- Product parameters
- Product size
- External characteristic curve
- Efficiency MAP
| Motor parameters | |||
| Motor model | FTYPXF225 | Motor model | Disk permanent magnet synchronous |
| Rated power (KW) | 9.5 | Rated efficiency | 94% |
| Rated speed (r/min)） | 3000 | Insulation class | H |
| Rated torque (N·m) | 30 | Weight (kg) | 22 |
| Rated voltage (VAC) | 380 | Cooling mode | 风冷 |
| Working system | S1 | Class of protection | IP67 |
This product is suitable for a rated voltage of 96-540 (VAC) and a rated speed of 1500-5000 (r/min).
