FTYPXF400
- Product parameter

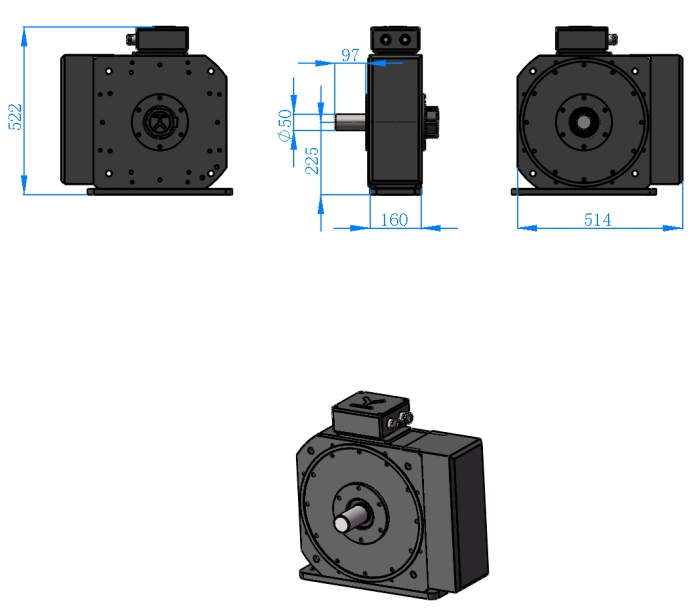

- Product size
- External characteristic curve
- Efficiency MAP
| Motor parameter | |||
| Motor type | FTYPXF400 | Motor type | Disk permanent magnet synchronous |
| Rated power (KW) | 73 | Rated efficiency | 96% |
| Rated speed (r/min) | 2500 | Insulation class | H |
| Rated torque (N·m) | 280 | Weight (kg) | 100 |
| Rated voltage (VAC) | 380 | Cooling mode | Air-cooled |
| Working system | S1 | Class of protection | IP67 |
This product is suitable for a rated voltage of 320-540 (VAC) and a rated speed of 1000-3500 (r/min).
