TYPXS255
- Product parameter

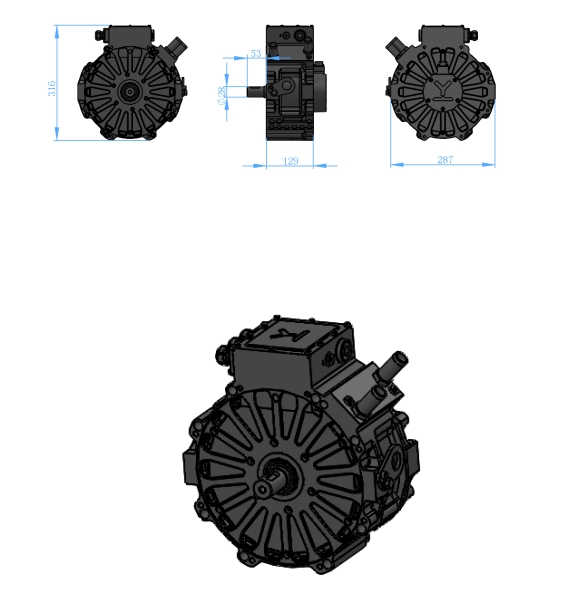

- Product size
- External characteristic curve
- Efficiency MAP
| Motor parameters | |||
| Motor type | TYPXS255 | Motor type | Disk permanent magnet synchronous |
| Rated power (KW) | 15 | Rated efficiency | ≥95% |
| Rated speed (r/min) | 2000 | Insulation class | H |
| Rated torque (N·m) | 71 | Weight (kg) | 25 |
| Rated voltage (VAC) | 320 | Cooling mode | water-cooling |
| Working system | S9 | Class of protection | IP67 |
This product is suitable for a rated voltage of 320-540 (VAC) and a rated speed of 1500-6200 (r/min).
